- 規格型號：59411546
- 頻率：27 MHz
- 尺寸：2016mm
- 產品描述：XRCGB27M000F3N00R0|四腳貼片晶振|XRCGB無源晶振|日本村田晶振,低相位噪聲特性可減少時鐘信號對射頻模塊的干擾,提升無線通信設備的信號接收靈敏度與傳輸穩定性,避免因信號干擾導致的通信中斷或數據誤碼.

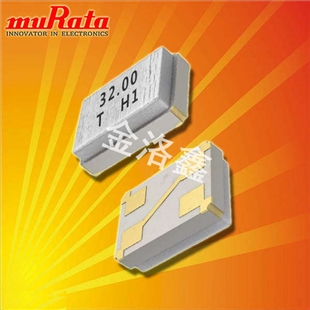

XRCGB27M000F3N00R0|四腳貼片晶振|XRCGB無源晶振|日本村田晶振
.png)
.png)
XRCGB27M000F3N00R0|四腳貼片晶振|XRCGB無源晶振|日本村田晶振

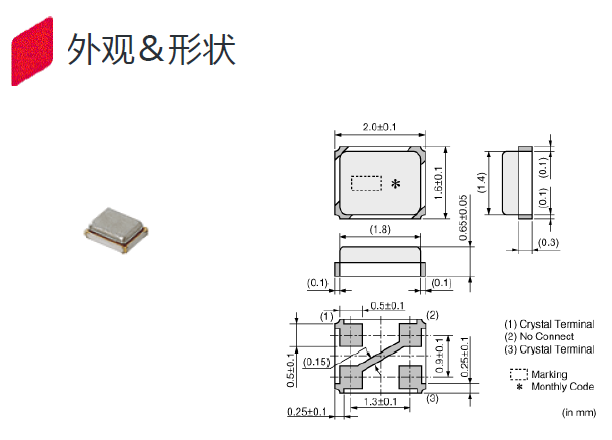

該晶振采用四腳貼片封裝設計,相較于傳統兩腳貼片晶振,具備顯著的結構與安裝優勢:一是固定穩定性更強,四腳引腳可從四個點位實現與PCB板的焊接固定,有效降低設備振動或溫度變化導致的晶振位移風險,提升長期使用中的結構可靠性,尤其適配汽車電子,工業設備等易受振動影響的場景,二是電路兼容性更優,四腳設計可通過特定引腳布局實現接地或?yàn)V波功能(具體需參考產品規格書),減少外部電磁干擾對晶體諧振的影響,提升時鐘信號純凈度,同時,四腳貼片封裝兼容自動化SMT貼片工藝,引腳間距與尺寸公差控制嚴格,能與貼片設備精準匹配,降低貼裝誤差,滿足電子設備批量生產需求,提升組裝效率與產品良率.
.png)
.png)
XRCGB27M000F3N00R0|四腳貼片晶振|XRCGB無源晶振|日本村田晶振
| 原廠型號 Originalmodel： | XRCGB27M000F3N00R0 | 品牌brand： | Murata村田晶振 |
| 品牌brand： | Murata村田晶振 | ESR（等效串聯電阻）Resistance) | 150 Ohms |
| 型號名稱 Modelname： | XRCGB | 溫度OperatingTemperature | -20°C~85°C |
| Type系列： | MHz Crystal | 腳位Termination： | 4pad |
| 頻率 frequency： | 27 MHz | 封裝類型PackageType： | 4-SMD |
| FrequencyStability頻率穩定度 | ±30ppm | 高度PackageHeight： | 0.70mm |
| frequencytolerance頻率容差 | ±30ppm | 最小包裝數MPQ： | 3000 |
| Loadcapacitance 負載電容 | 6pF | 包裝Packaging： | TapeandReel |
| Size/Dimension尺寸 | 2.00mm x 1.60mm | 安裝方式MountingStyle： | SurfaceMount |
.png)
.png)
XRCGB27M000F3N00R0|四腳貼片晶振|XRCGB無源晶振|日本村田晶振
.png)
XRCGB27M000F3N00R0|四腳貼片晶振|XRCGB無源晶振|日本村田晶振
| XRCGB25M000F3M00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 25 MHz | ±40ppm | ±30ppm | 6pF |
| XRCGB27M120F3M00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 27.12 MHz | ±40ppm | ±30ppm | 6pF |
| XRCGB24M000F3M00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±40ppm | ±30ppm | 6pF |
| XRCGB24M000F2P00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±20ppm | ±20ppm | 6pF |
| XRCGB32M000F1H01R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±10ppm | ±10ppm | 8pF |
| XRCGB32M000F1H00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 32 MHz | ±10ppm | ±10ppm | 6pF |
| XRCGB25M000F3A00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 25 MHz | ±35ppm | ±35ppm | 6pF |
| XRCGB24M000F0L00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±50ppm | ±100ppm | 6pF |
| XRCGB48M000F4M00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 48 MHz | ±40ppm | ±45ppm | 6pF |
| XRCGB24M000F3N00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±30ppm | ±30ppm | 6pF |
| XRCGB27M120F3M10R0 | Murata村田晶振 | XRCGB | MHz Crystal | 27.12 MHz | ±40ppm | ±30ppm | 10pF |
| XRCGB25M000F3M18R0 | Murata村田晶振 | - | MHz Crystal | 25 MHz | ±40ppm | ±30ppm | 12pF |
| XRCGB32M000F2P01R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±20ppm | ±20ppm | 8pF |
| XRCGB32M000F2P00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 32 MHz | ±20ppm | ±20ppm | 6pF |
| XRCGB25M000F2P02R0 | Murata村田晶振 | - | MHz Crystal | 25 MHz | ±20ppm | ±20ppm | 10pF |
| XRCGB27M120F2P00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 27.12 MHz | ±20ppm | ±20ppm | 6pF |
| XRCGB25M000F2P00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 25 MHz | ±20ppm | ±20ppm | 6pF |
| XRCGB24M000F2P01R0 | Murata村田晶振 | - | MHz Crystal | 24 MHz | ±20ppm | ±20ppm | 8pF |
| XRCGB27M120F3M13R0 | Murata村田晶振 | - | MHz Crystal | 27.12 MHz | ±40ppm | ±30ppm | 10pF |
| XRCGB32M000F2P2CR0 | Murata村田晶振 | XRCGB | MHz Crystal | 32 MHz | ±20ppm | ±20ppm | 8pF |
| XRCGB32M000FBH50R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±10ppm | ±15ppm | 10pF |
| XRCGB24M000F2P91R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±20ppm | ±20ppm | 8pF |
| XRCGB16M000FXN00R0 | Murata村田晶振 | - | MHz Crystal | 16 MHz | ±40ppm | ±40ppm | 6pF |
| XRCGB32M000F1H02R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±10ppm | ±10ppm | 10pF |
| XRCGB32M000F1H19R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±10ppm | ±10ppm | 6pF |
| XRCGB40M000F5A00R0 | Murata村田晶振 | - | MHz Crystal | 40 MHz | ±65ppm | ±50ppm | 6pF |
| XRCGB24M000F3A00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±35ppm | ±30ppm | 6pF |
| XRCGB27M120F3A00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 27.12 MHz | ±35ppm | ±30ppm | 6pF |
| XRCGB25M000F3A01R0 | Murata村田晶振 | XRCGB | MHz Crystal | 25 MHz | ±35ppm | ±30ppm | 8pF |
| XRCGB48M000F5A00R0 | Murata村田晶振 | - | MHz Crystal | 48 MHz | ±65ppm | ±50ppm | 6pF |
| XRCGE25M000FBA1AR0 | Murata村田晶振 | XRCFD | MHz Crystal | 25 MHz | ±35ppm | ±15ppm | 6pF |
| XRCHA20M000F0A01R0 | Murata村田晶振 | XRCHA | MHz Crystal | 20 MHz | ±100ppm | ±100ppm | 8pF |
| XRCGB27M120F0L00R0 | Murata村田晶振 | - | MHz Crystal | 27.12 MHz | ±50ppm | ±100ppm | 6pF |
| XRCGB32M000F0L00R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±50ppm | ±100ppm | 6pF |
| XRCGB24M000FAN00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±40ppm | ±25ppm | 6pF |
| XRCGB38M400F4M00R0 | Murata村田晶振 | - | MHz Crystal | 38.4 MHz | ±40ppm | ±45ppm | 6pF |
| XRCGB50M000F4M00R0 | Murata村田晶振 | - | MHz Crystal | 50 MHz | ±40ppm | ±45ppm | 6pF |
| XRCGB32M000F3M00R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±40ppm | ±30ppm | 6pF |
| XRCGB24M000F3M13R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±40ppm | ±30ppm | 6pF |
| XRCGB32M000F2P02R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±20ppm | ±20ppm | 10pF |
| XRCGB30M000F2P00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 30 MHz | ±20ppm | ±20ppm | 6pF |
| XRCGB27M120F2P02R0 | Murata村田晶振 | - | MHz Crystal | 27.12 MHz | ±20ppm | ±20ppm | 10pF |
| XRCGB32M000F2P26R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±20ppm | ±20ppm | 5pF |
| XRCGB31M250F2P00R0 | Murata村田晶振 | XRCGB | MHz Crystal | 31.25 MHz | ±20ppm | ±20ppm | 6pF |
| XRCGB27M120F3G00R0 | Murata村田晶振 | - | MHz Crystal | 27.12 MHz | ±50ppm | ±30ppm | 6pF |
| XRCGB16M000FXN22R0 | Murata村田晶振 | XRCGB | MHz Crystal | 16 MHz | ±40ppm | ±40ppm | 8pF |
| XRCGB27M600F2C00R0 | Murata村田晶振 | - | MHz Crystal | 27.6 MHz | ±20ppm | ±20ppm | 6pF |
| XRCGB24M000F1H01R0 | Murata村田晶振 | - | MHz Crystal | 24 MHz | ±10ppm | ±10ppm | 8pF |
| XRCGB26M000F1H02R0 | Murata村田晶振 | - | MHz Crystal | 26 MHz | ±10ppm | ±10ppm | 10pF |
| XRCGB24M000F1H70R0 | Murata村田晶振 | - | MHz Crystal | 24 MHz | ±20ppm | ±10ppm | 6pF |
| XRCGB32M000F1H83R0 | Murata村田晶振 | - | MHz Crystal | 32 MHz | ±15ppm | ±10ppm | 9pF |
| XRCGE27M000FBA1AR0 | Murata村田晶振 | XRCGE | MHz Crystal | 27 MHz | ±35ppm | ±15ppm | 6pF |
| XRCGB26M000F3A00R0 | Murata村田晶振 | - | MHz Crystal | 26 MHz | ±35ppm | ±30ppm | 6pF |
| XRCGE26M000FBA1BR0 | Murata村田晶振 | XRCGE | MHz Crystal | 26 MHz | ±35ppm | ±15ppm | 8pF |
| XRCGE20M000F3A1AR0 | Murata村田晶振 | XRCFD | MHz Crystal | 20 MHz | ±45ppm | ±30ppm | 6pF |
| XRCGB24M000F2A01R0 | Murata村田晶振 | XRCGB | MHz Crystal | 24 MHz | ±35ppm | ±20ppm | 8pF |
| XRCGB27M120F3P00R0 | Murata村田晶振 | - | MHz Crystal | 27.12 MHz | ±20ppm | ±30ppm | 6pF |
| XRCGB32M000F2P55R0 | Murata村田晶振 | XRCGB | MHz Crystal | 32 MHz | ±20ppm | ±20ppm | 6pF |
| XRCPB26M000F2P00R0 | Murata村田晶振 | XRCPB | MHz Crystal | 26 MHz | ±20ppm | ±20ppm | 6pF |
| XRCGB32M000F1H18R0 | Murata村田晶振 | XRCFD | MHz Crystal | 32 MHz | ±15ppm | ±10ppm | 9pF |
