- 規格型號：58460192
- 頻率：38.400MHZ
- 尺寸：2016mm
- 產品描述：1ZZNAE38400AA0C|DSX211SH晶振|SMD水晶振動子|無線模塊晶振,尺寸2016mm,頻率38.400MHZ,遠優于普通無線晶振標準,確保Wi-Fi模塊在低溫下正常接入網絡,藍牙模塊在高溫下保持穩定數據交互,LoRa模塊在溫差變化中維持遠距離...

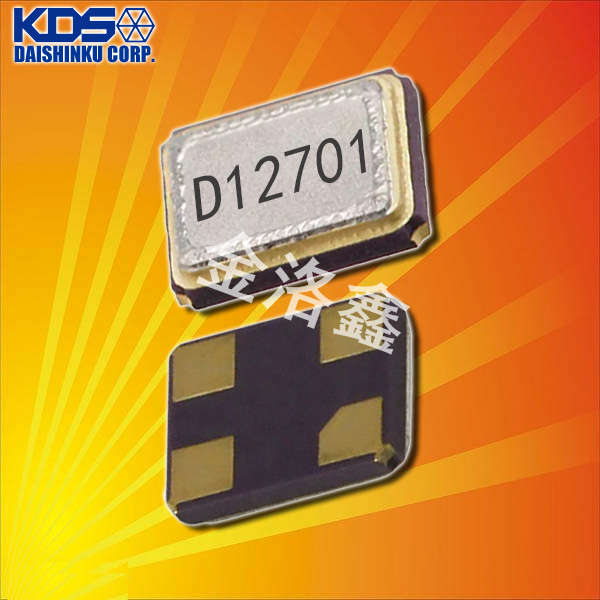

1ZZNAE38400AA0C|DSX211SH晶振|SMD水晶振動子|無線模塊晶振
.png)
.png)
1ZZNAE38400AA0C|DSX211SH晶振|SMD水晶振動子|6G無線模塊晶振
1ZZNAE38400AA0C型號晶振,精準對應DSX211SH系列技術標準,采用SMD(表面貼裝)工藝的水晶振動子結構,是專為無線模塊研發的高頻振蕩核心元件,從設計源頭便深度契合無線信號傳輸,數據交互的穩定性需求.其標稱頻率經精密校準鎖定為38.4MHz(可根據無線模塊需求拓展至16MHz-50MHz),能完美匹配Wi-Fi模塊的信號收發,藍牙晶振模塊的短距離數據傳輸,LoRa模塊的遠距離低功耗通信等核心場景,確保無線數據在調制,解調過程中時序精準,避免因頻率偏差導致的信號丟包,連接中斷.輸出穩定性誤差嚴格控制在±10ppm以內,這一精度針對無線模塊常見的電壓波動,環境干擾做了特殊優化,遠高于普通民用晶振,可有效解決因頻率漂移引發的Wi-Fi斷連,藍牙通話卡頓,LoRa數據傳輸延遲等問題.
.png)
.png)
1ZZNAE38400AA0C|DSX211SH晶振|SMD水晶振動子|6G無線模塊晶振
| 原廠型號 Originalmodel： | 1ZZNAE38400AA0C | 品牌brand： | KDS晶振 |
| 品牌brand： | KDS晶振 | ESR（等效串聯電阻）Resistance) | - |
| 型號名稱 Modelname： | DSX211SH晶振 | 溫度OperatingTemperature | −30 +85℃ |
| Type系列： | MHZCrystal | 腳位Termination： | 4pad |
| 頻率 frequency： | 38.400MHZ | 封裝類型PackageType： | 4-Smd |
| FrequencyStability頻率穩定度 | ±30ppm | 高度PackageHeight： | 0.45mm |
| frequencytolerance頻率容差 | ±20ppm | 最小包裝數MPQ： | 3000 |
| Loadcapacitance 負載電容 | 10PF | 包裝Packaging： | TapeandReel |
| Size/Dimension尺寸 | 2016石英晶振 | 安裝方式MountingStyle： | SurfaceMount |
.png)
.png)

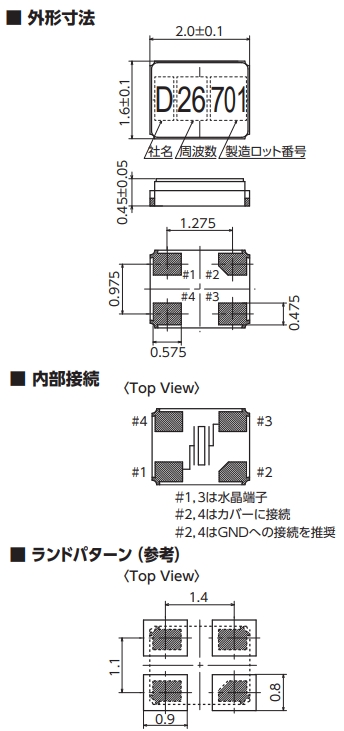

1ZZNAE38400AA0C晶振|SMD水晶振動子|6G無線模塊晶振
|
.png)
1ZZNAE38400AA0C|DSX211SH晶振|SMD水晶振動子|6G無線模塊晶振
| KDS晶振 | 1TJF0SPDJ1AI00S | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TJF080DP1AI00P | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
| KDS晶振 | 1TJF090DP1AI007 | DST310S | 3215 | 32.768KHZ | 9PF | 20PPM |
| KDS晶振 | 1TJF0SPDP1AI008 | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TJF125DP1AI009 | DST310S | 3215 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TJF090DP1AA00L | DST310S | 3215 | 32.768KHZ | 9PF | 20PPM |
| KDS晶振 | 1TJF080DP1AA00K | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
| KDS晶振 | 1TJF0SPDP1AA00G | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TJF0SPDN1A000B | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TD125DGNS003 | DT-26 | 206 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TD125DHNS036 | DT-26 | 206 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TD125DHNS002 | DT-26 | 206 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TD060DHNS014 | DT-26 | 206 | 32.768KHZ | 6.0PF | 20PPM |
| KDS晶振 | 1TD125BHNS001 | DT-26 | 206 | 32.768KHZ | 12.5PF | 10PPM |
| KDS晶振 | 1TD075BHNS001 | DT-26 | 206 | 32.768KHZ | 7.5PF | 10PPM |
| KDS晶振 | 1TD125BFNS001 | DT-26 | 206 | 32.768KHZ | 12.5PF | 10PPM |
| KDS晶振 | 1TD1001HNS001 | DT-26 | 206 | 32.768KHZ | 10.0PF | -6/+2PPM |
| KDS晶振 | 1TD1250HNS005 | DT-26 | 206 | 32.768KHZ | 12.5PF | 30/40P |
| KDS晶振 | 1TC125DFNS030 | DT-38 | 308 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TC125NFNS002 | DT-38 | 308 | 32.768KHZ | 12.5PF | 1000PPM |
| KDS晶振 | 1TC125AFSS003 | DT-38 | 308 | 32.768KHZ | 12.5PF | 5PPM |
| KDS晶振 | 1TC250E65 | DT-38 | 308 | 32.768KHZ | 12.5PF | +12/+28PPM |
| KDS晶振 | 1C240000AB0G | DSX321G | 3225 | 40.000MHZ | 10PF | 10PPM |
| KDS晶振 | 1C241600CDAA | DSX321G | 3225 | 41.6MHZ | 10PF | 30PPM |
| KDS晶振 | 1AJ043324C | SMD-49 | 11*4.6 | 4.332MHZ | 12PF | 20PPM |
| KDS晶振 | 1ZZNAE26000AB0J | DSX211SH | 2016 | 26.000MHZ | 7PF | 10PPM |
| KDS晶振 | 1AJ17408AAGA | SMD-49 | 11*4.6 | 17.408MHZ | 16PF | 50PPM |
| KDS晶振 | 1AJ250004B | SMD-49 | 11*4.6 | 25.000MHZ | 20PF | 30PPM |
| KDS晶振 | 1ZZCAA24000BE0B | DSX211G | 2016 | 24.000MHZ | 10PF | 20PPM |
| KDS晶振 | 1N227000BB0AK | DSX321G | 3225 | 27.000MHZ | 11PF | 12PPM |
| KDS晶振 | 1N230000AB0C | DSX321G | 3225 | 30.000MHZ | 10PF | 30PPM |
| KDS晶振 | 1N240000AB0J | DSX321G | 3225 | 40.000MHZ | 15PF | 15PPM |
| KDS晶振 | 1XSE098304AR2 | DSO321SR | 3225 | 98.304MHZ | 3.3V | 50ppm |
| KDS晶振 | 1AJ100005B | SMD-49 | 11*4.6 | 10.000MHZ | 12PF | 50PPM |
| KDS晶振 | 1ZN326000AB0A | DSX221SH | 2520 | 26.000MHZ | 7PF | 10PPM |
| KDS晶振 | 1AJ240006AEA | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 50PPM |
| KDS晶振 | 1AJ240006AK | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 30PPM |
| KDS晶振 | 1AJ240006BB | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 30PPM |
| KDS晶振 | 1AJ245765C | SMD-49 | 11*4.6 | 24.576MHZ | 18PF | 30PPM |
| KDS晶振 | ZC08759 | DSO211AH | 2016 | 25.000MHZ | 3.3V | 50ppm |
| KDS晶振 | 1AR270002GA | SMD-49 | 11*4.6 | 27.000MHZ | 12.9PF | 20PPM |
| KDS晶振 | 1AR304002A | SMD-49 | 11*4.6 | 30.400MHZ | 12PF | 50ppm |
| KDS晶振 | 1XXD16367MAA | DSB211SDN | 2016 | 16.367MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC12467 | DSA211SDN | 2016 | 16.32MHZ | 3.3V | 1.5ppm |
| KDS晶振 | 1XXB16367MAA | DSB221SDN | 2520 | 16.367MHZ | 2.8V | 1.5ppm |
| KDS晶振 | 1XXB16369JFA | DSB221SDN | 2520 | 16.369MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC09382 | DSA535SG | 5032 | 18.432MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC12456 | DSB211SDN | 2016 | 16.320MHZ | 3.3V | 1.5ppm |
| KDS晶振 | 1ZNA32000BB0B | DSX221G | 2520 | 32.000MHZ | 12PF | 15ppm |
| KDS晶振 | ZC12965 | DSA321SDN | 3225 | 23.04MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC13727 | DSX221SH | 2520 | 24.000MHZ | 10PF | 30ppm |
| KDS晶振 | 1ZNA16000AB0P | DSX221G | 2520 | 16.000MHZ | 9PF | 10ppm |
| KDS晶振 | X1H013000B81H | HSX531S | 5032 | 13.000MHZ | 8PF | 10ppm |
| KDS晶振 | X4S013000DA1H-W | HSX421S | 4025 | 13.000MHZ | 10PF | 20ppm |
| KDS晶振 | 1XSE009600AV | DSO321SV | 3225 | 9.6MHZ | 3.3V | 100ppm |
| KDS晶振 | 1XSE012000AR58 | DSO321SR | 3225 | 12.000MHZ | 3.3V | 50ppm |
| KDS晶振 | 1ZZNAE48000ZZ0R | DSX211SH | 2016 | 48.000MHZ | 7PF | 20PPM |
| KDS晶振 | 1N227000EE0L | DSX321G | 3225 | 27.000MHZ | 9PF | 50ppm |
| KDS晶振 | 1ZZCAA27120BB0D | DSX211G | 2016 | 27.12MHZ | 10PF | 20PPM |
| KDS晶振 | 1N226000AA0L | DSX321G | 3225 | 26.000MHZ | 7.5pf | 10ppm |
