首頁進口晶振愛普生晶振X1M0001810003-LVDS差分晶體振蕩器-6G基站晶振

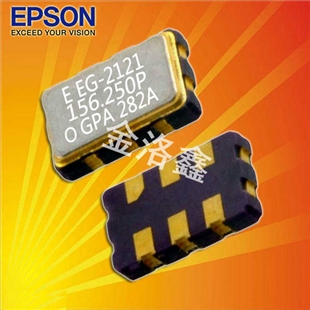

X1M0001810003-LVDS差分晶體振蕩器-6G基站晶振

規格型號：92559102
頻率：148.5MHz
尺寸：7.0×5.0mm
PDF
產品描述：日本愛普生晶振,進口晶振,EG-4121CA有源晶振,X1M0001810003晶振,頻率148.5MHz,尺寸7050mm,電壓2.5V,工作溫度-40~85°C,頻率穩定性50ppm,LVDS差分晶體振蕩器,貼片振蕩器,6G基站晶振,網絡終端晶振,以太網設備晶振,室內路...

X1M0001810003-LVDS差分晶體振蕩器-6G基站晶振,日本愛普生晶振,進口晶振,EG-4121CA有源晶振,X1M0001810003晶振,頻率148.5MHz,尺寸7050mm,電壓2.5V,工作溫度-40~85°C,頻率穩定性50ppm,LVDS差分晶體振蕩器,六腳貼片振蕩器,6G基站晶振,網絡終端晶振,以太網設備晶振,室內路由器晶振,便攜式多媒體設備晶振.

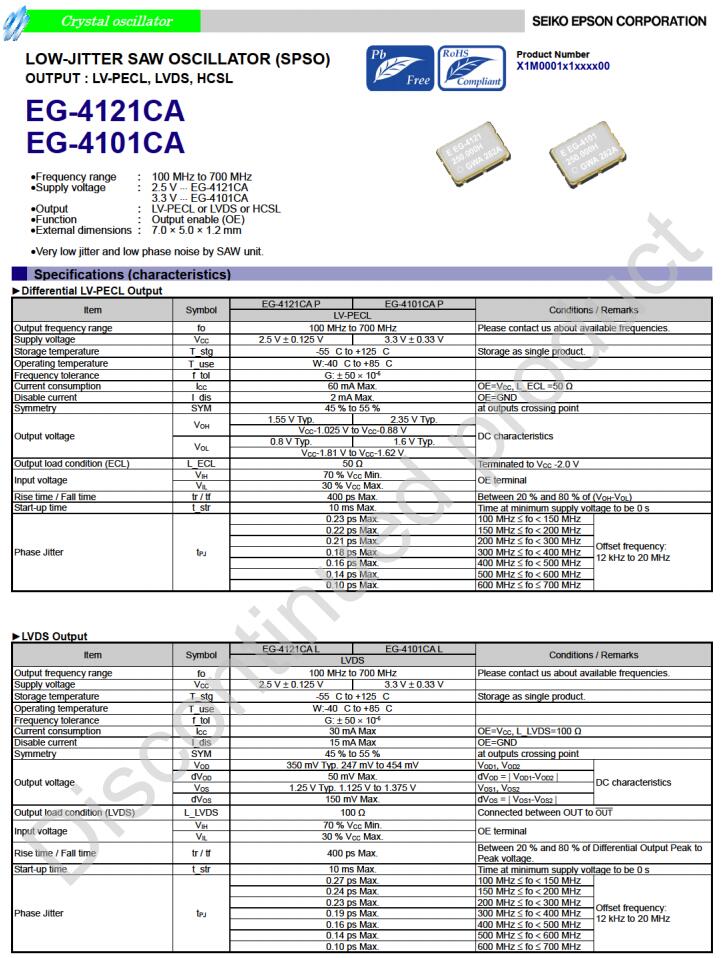

X1M0001810003-LVDS差分晶體振蕩器-6G基站晶振,參數圖

項目	符號	規格說明	條件
額定頻率	f_nom	148.5MHz	請聯系我們以便獲取其它可用頻率的相關信息
電源電壓	Vcc	2.5V±0.125V
儲存溫度	T_stg	-55℃~+125℃	裸存
工作溫度	T_use	-40℃~ +85℃
頻率公差（標準）	f_tol	±50 ppm	+25℃,超出標準的規格說明請聯系我們以便獲取相關信息
電流消耗	f_tem	30mA Max	OE=Vcc,L-LVDS=100Ω
禁用電流	I_dis	15mA Max	OE=GND
對稱性（占空比）	SYM	45%~55%	在輸出交叉點
輸出電壓	VOD	350mV Typ	DC charactenistics
輸出電壓	VOS	1.25V Typ	DC charactenistics
輸出負載條件（LVDS）	L _LVDS	100Ω	Terminated to GND
輸入電壓	VIH	70%Vcc Min	OE terminal
輸入電壓	VIL	30%Vcc Max	OE terminal
上升下降時間	tr/tf	400ps Max	Between 20% and 80% of (VOH+VOL)
起始時間	t _ str	10ms Max	Time at minimum supply voltage to be 0
相位抖動	tpj	0.27ps Max	100MHz≤fo<150MHz
老化	f_aging	±10ppm/year	+25℃,第一年，Vcc=2.5V,3.3V

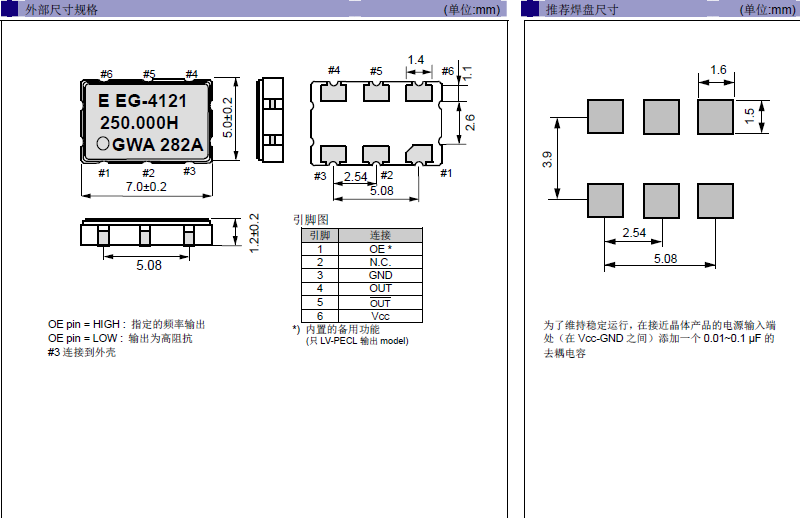

X1M0001810003-LVDS差分晶體振蕩器-6G基站晶振 尺寸圖

編碼	型號	頻率	LxWxH/尺寸	輸出方式	電源電壓
X1M0001410001	EG-4101CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0001410002	EG-4101CA	281.333300 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0001410003	EG-4101CA	106.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0001410004	EG-4101CA	698.812300 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0001410007	EG-4101CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0001410008	EG-4101CA	400.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0001410010	EG-4101CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0001410013	EG-4101CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0001410014	EG-4101CA	644.531200 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0001410017	EG-4101CA	156.253906 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V
X1M0001510002	EG-4101CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V
X1M0001510003	EG-4101CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V
X1M0001510004	EG-4101CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V
X1M0001510005	EG-4101CA	148.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V
X1M0001510006	EG-4101CA	240.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V
X1M0001510007	EG-4101CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V
X1M0001510008	EG-4101CA	148.351640 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V
X1M0001510009	EG-4101CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.465 V
X1M0001810001	EG-4121CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V
X1M0001810002	EG-4121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V
X1M0001810003	EG-4121CA	148.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V
X1M0001810004	EG-4121CA	375.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V
X1M0001810005	EG-4121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V
X1M0001810006	EG-4121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V
X1M0004110002	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110005	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110006	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110007	MG7050EAN	669.325580 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110008	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110009	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110010	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110011	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110012	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110013	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V
X1M0004110014	MG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110015	MG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110016	MG7050EAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110017	MG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110018	MG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110019	MG7050EAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110020	MG7050EAN	156.253906 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V
X1M0004110021	MG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V
X1M0004110022	MG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V
X1M0004110023	MG7050EAN	156.253906 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110024	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004110025	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.375 to 2.625 V
X1M0004110026	MG7050EAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.970 to 3.630 V
X1M0004210002	MG7050VAN	212.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V
X1M0004210003	MG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V
X1M0004210004	MG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.375 to 2.625 V
X1M0004210005	MG7050VAN	644.531250 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.375 to 2.625 V
X1M0004210006	MG7050VAN	322.265625 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.375 to 2.625 V
X1M0004210007	MG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V
X1M0004210008	MG7050VAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V
X1M0004210009	MG7050VAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V
X1M0004210010	MG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V
X1M0004210011	MG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V
X1M0004210012	MG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V
X1M0004210013	MG7050VAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V
X1M0004210014	MG7050VAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V
X1M0004210015	MG7050VAN	322.265625 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V
X1M0004210016	MG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.375 to 2.625 V
X1M0004310004	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V
X1M0004310006	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V
X1M0004310007	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V
X1M0004310008	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V
X1M0004310009	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V
X1M0004310010	MG7050HAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V
X1M0004310011	MG7050HAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V
