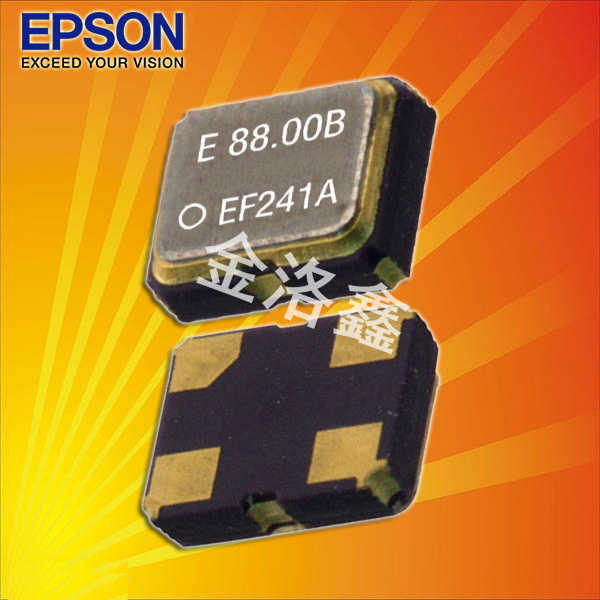

首頁進口晶振愛普生晶振X1G004171002100|13MHz|50ppm|2520mm

X1G004171002100|13MHz|50ppm|2520mm

規格型號：94738557
頻率：13MHz
尺寸：2.5×2.0×0.8mm
PDF
產品描述：X1G004171002100晶振,SG-210STF晶振,頻率13MHz,精度50ppm,尺寸大小2520mm,愛普生石英貼片振蕩器,智能家居應用晶振,工業設備晶振,無線模塊應用晶振,5G室外基站晶振,衛星通訊晶振

X1G004171002100|13MHz|50ppm|2520mm，X1G004171002100晶振,SG-210STF晶振,頻率13MHz,精度50ppm,尺寸大小2520mm,愛普生石英貼片振蕩器,智能家居應用晶振,工業設備晶振,無線模塊應用晶振,5G室外基站晶振,衛星通訊晶振

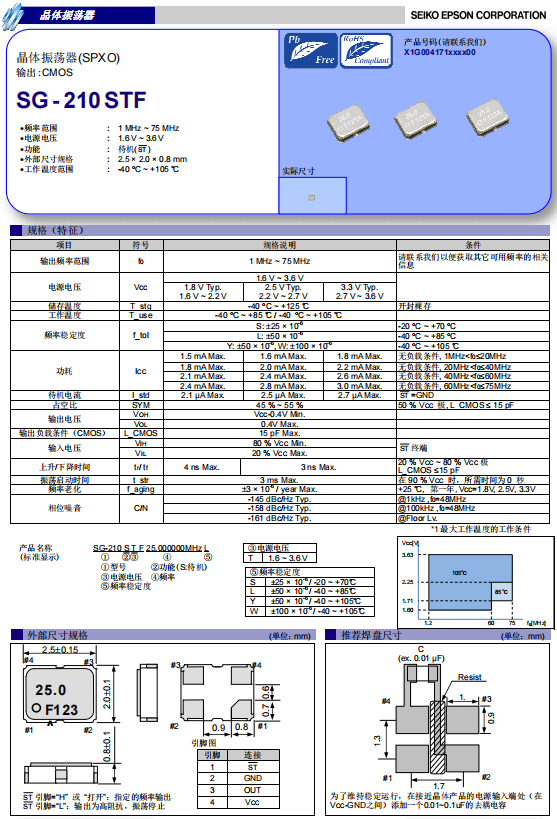

X1G004171002100|13MHz|50ppm|2520mm,參數圖

晶振規格	單位	SG-210STF	石英晶振基本條件
標準頻率	f_nom	13MHZ	標準頻率
儲存溫度	T_stg	-40°C ～ +125°C	裸存
工作溫度	T_use	-40°C ～ +85°C	標準溫度
電源電壓	VCC	1.6~3.6V
頻率公差	f_— l	±50× 10-6 (標準),	+25°C 對于超出標準的規格說明,請聯系我們以便獲取相關的信息,
功耗電流	Icc	≤ 1.8 mA	超出標準的規格請聯系我們.http://www.dkfv.cn
輸出負載條件	L_CMOS	15pF Max	不同負載電容要求,請聯系我們.
上升/下降時間	tr/tf	3nsMax	20%Vcc~80%Vcc極 L _CMOS≤15 pF
頻率老化	f_age	±3 × 10-6 / year Max.	+25°C,第一年

X1G004171002100|13MHz|50ppm|2520mm,尺寸圖

編碼	Model/型號	Frequency/頻率	LxWxH/尺寸	Output Wave/輸出方式	Supply Voltage/電源電壓	Ope Temperature/工作溫度
X1G0039510014	SG-210SEH	98.304000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.620 to 1.890 V	-40 to 85 °C
X1G0041710002	SG-210STF	33.300000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710005	SG-210STF	1.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710006	SG-210STF	1.843200 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710007	SG-210STF	2.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710008	SG-210STF	3.686400 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710009	SG-210STF	4.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710010	SG-210STF	4.096000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710011	SG-210STF	5.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710012	SG-210STF	6.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710013	SG-210STF	6.144000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710014	SG-210STF	7.372800 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710015	SG-210STF	8.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710016	SG-210STF	10.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710017	SG-210STF	11.289600 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710018	SG-210STF	12.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710019	SG-210STF	12.288000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710020	SG-210STF	12.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710021	SG-210STF	13.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710022	SG-210STF	13.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710023	SG-210STF	13.560000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710024	SG-210STF	14.318180 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710025	SG-210STF	14.745600 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710026	SG-210STF	15.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710027	SG-210STF	16.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710028	SG-210STF	19.200000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710029	SG-210STF	20.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710030	SG-210STF	22.579200 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710031	SG-210STF	24.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710032	SG-210STF	24.576000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710033	SG-210STF	25.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710034	SG-210STF	26.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710035	SG-210STF	27.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710036	SG-210STF	27.120000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710037	SG-210STF	28.636360 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710038	SG-210STF	29.491200 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710039	SG-210STF	30.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710040	SG-210STF	32.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710041	SG-210STF	33.333000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710042	SG-210STF	36.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710043	SG-210STF	37.400000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710044	SG-210STF	38.400000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710045	SG-210STF	40.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710046	SG-210STF	48.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710047	SG-210STF	50.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710048	SG-210STF	52.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710049	SG-210STF	54.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710052	SG-210STF	8.192000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
