首頁進口晶振愛普生晶振X1E0002510032-40.0000MHz-10pf-1612mm

X1E0002510032-40.0000MHz-10pf-1612mm

規格型號：93651939
頻率：40MHz
尺寸：1.6×1.2×0.35mm
PDF
產品描述：X1E0002510032晶振,FA-118T無源晶振,頻率40.0000MHz,負載10pf,尺寸1612mm,Epson進口晶振,超小型晶振,移動電話晶振,無線局域網晶振,ISM頻段電臺廣播晶振,MPU時鐘晶振,藍牙模塊應用晶振

X1E0002510032-40.0000MHz-10pf-1612mm,X1E0002510032晶振,FA-118T無源晶振,頻率40.0000MHz,負載10pf,尺寸1612mm,Epson進口晶振,超小型晶振,移動電話晶振,無線局域網晶振,ISM頻段電臺廣播晶振,MPU時鐘晶振,藍牙模塊應用晶振.

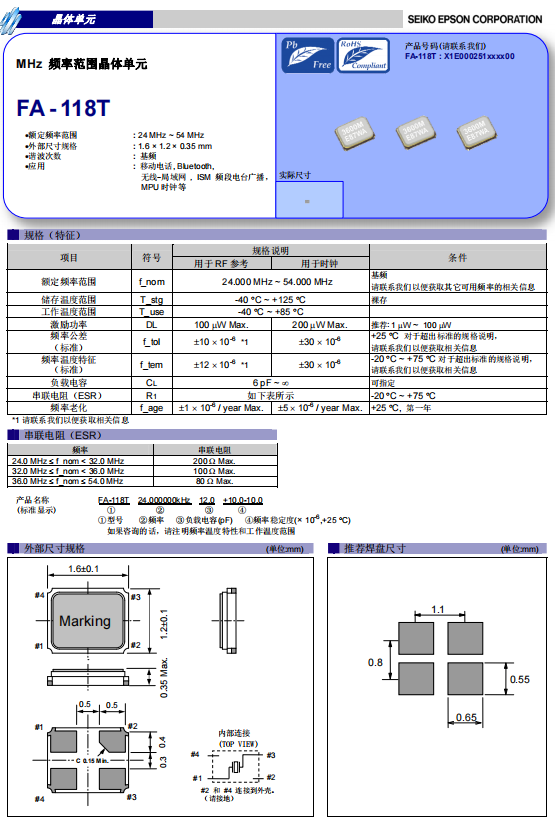

X1E0002510032-40.0000MHz-10pf-1612mm,參數圖

項目	符號	規格說明	條件
額定頻率	f_nom	40MHz	請聯系我們以便獲取其它可用頻率的相關信息
儲存溫度	T_stg	-40℃~+125℃	裸存
工作溫度	T_use	-20℃~ +75℃
激勵功率	DL	100μW Max	推薦1μW ~100μW
頻率公差（標準）	f_tol	±10 ppm	+25℃,超出標準的規格說明請聯系我們以便獲取相關信息
頻率溫度特征（標準）	f_tem	±12 ppm	-20 ?C ~ +75 ?C 對于超出標準的規格說明，請聯系我們以便獲取相關信息
負載電容	CL	10pF	可指定
串聯電阻	R1	80Ω Max
頻率老化	f_age	±3 ppm	+25℃,第一年

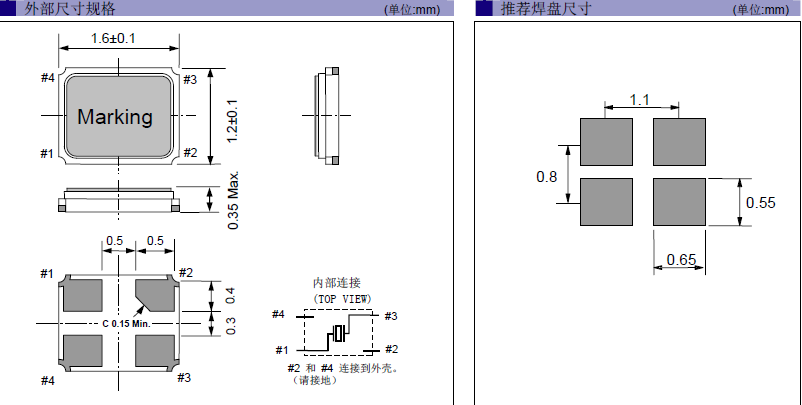

X1E0002510032-40.0000MHz-10pf-1612mm尺寸圖

編碼	尺寸	型號	頻率	負載	工作溫度
X1E0002510009	1.6 x 1.2 x 0.35mm	FA-118T	27.120000 MHz	10 pF	-20 to +75 °C
X1E0002510011	1.6 x 1.2 x 0.35mm	FA-118T	26.000000 MHz	8 pF	-20 to +75 °C
X1E0002510013	1.6 x 1.2 x 0.35mm	FA-118T	27.120000 MHz	10 pF	-20 to +85 °C
X1E0002510014	1.6 x 1.2 x 0.35mm	FA-118T	26.000000 MHz	9 pF	-20 to +75 °C
X1E0002510016	1.6 x 1.2 x 0.35mm	FA-118T	37.400000 MHz	16 pF	-20 to +85 °C
X1E0002510017	1.6 x 1.2 x 0.35mm	FA-118T	37.400000 MHz	16 pF	-20 to +70 °C
X1E0002510031	1.6 x 1.2 x 0.35mm	FA-118T	37.400000 MHz	16 pF	-30 to +85 °C
X1E0002510032	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	10 pF	-20 to +75 °C
X1E0002510034	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	9 pF	-20 to +75 °C
X1E0002510035	1.6 x 1.2 x 0.35mm	FA-118T	30.000000 MHz	8 pF	-20 to +75 °C
X1E0002510046	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	12 pF	-20 to +75 °C
X1E0002510050	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	9 pF	-20 to +75 °C
X1E0002510056	1.6 x 1.2 x 0.35mm	FA-118T	52.000000 MHz	9 pF	-20 to +75 °C
X1E0002510057	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	7 pF	-20 to +75 °C
X1E0002510058	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	8 pF	-30 to +85 °C
X1E0002510059	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	8 pF	-20 to +75 °C
X1E0002510060	1.6 x 1.2 x 0.35mm	FA-118T	48.000000 MHz	10 pF	-20 to +75 °C
X1E0002510064	1.6 x 1.2 x 0.35mm	FA-118T	26.000000 MHz	12 pF	-20 to +75 °C
X1E0002510068	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	8 pF	-20 to +75 °C
X1E0002510069	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	10 pF	-20 to +75 °C
X1E0002510071	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	12 pF	-30 to +85 °C
X1E0002510075	1.6 x 1.2 x 0.35mm	FA-118T	26.000000 MHz	8 pF	-30 to +85 °C
X1E0002510077	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	9 pF	-20 to +75 °C
X1E0002510078	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	7 pF	-20 to +75 °C
X1E0002510079	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	9 pF	-20 to +75 °C
X1E0002510080	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	6 pF	-20 to +75 °C
X1E0002510086	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	8 pF	-20 to +75 °C
X1E0002510092	1.6 x 1.2 x 0.35mm	FA-118T	27.000000 MHz	10 pF	-20 to +75 °C
X1E0002510093	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	8 pF	-20 to +70 °C
X1E0002510100	1.6 x 1.2 x 0.35mm	FA-118T	27.120000 MHz	9 pF	-20 to +75 °C
X1E0002510102	1.6 x 1.2 x 0.35mm	FA-118T	50.000000 MHz	8 pF	-40 to +85 °C
X1E0002510104	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	10 pF	-40 to +85 °C
X1E0002510110	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	12.5 pF	-20 to +75 °C
