AB-27.000MHZ-B2F,-20~70°C,27MHz,HC49/U插件晶振,美國Abracon晶振,歐美進口晶振,AB石英晶體諧振器,AB-27.000MHZ-B2F晶振,工作溫度-20~70°C,頻率27MHz,HC49/U插件晶振,CPU晶振,儲存卡晶振,平板電腦晶振,打印機晶振,數據通信晶振,數據輸入輸出機晶振.

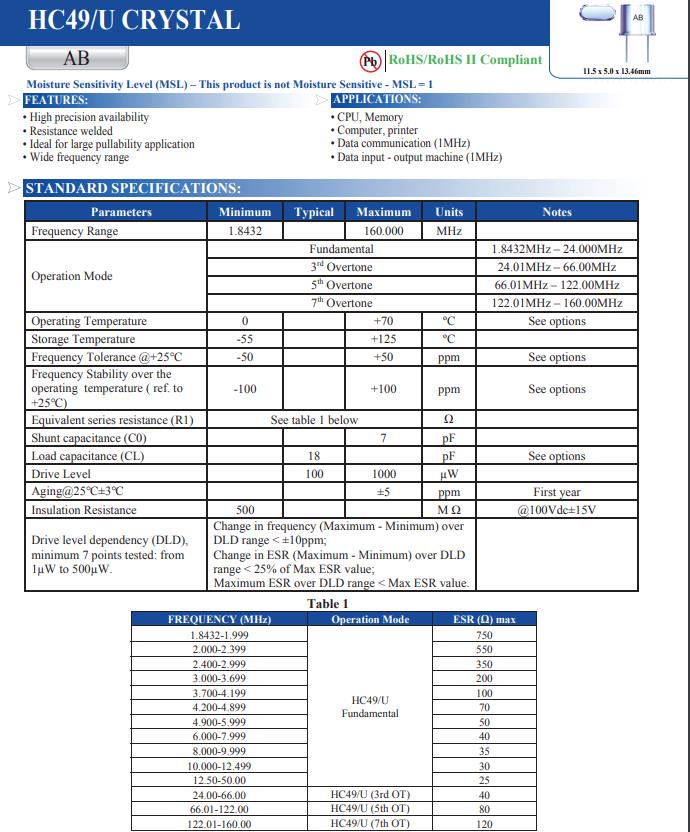

AB-27.000MHZ-B2F,-20~70°C,27MHz,HC49/U插件晶振,參數圖

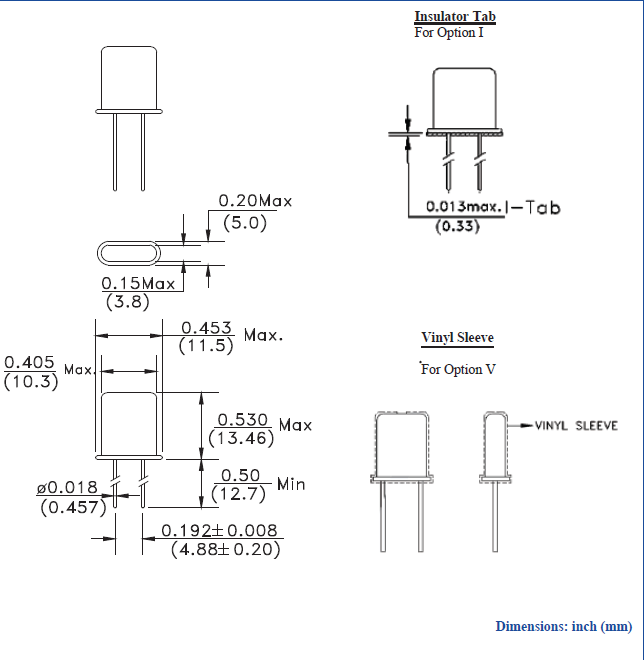

AB-27.000MHZ-B2F,-20~70°C,27MHz,HC49/U插件晶振尺寸圖

原廠編碼	生產廠家	型號	頻率	頻率穩定度	頻率偏差	負載電容
AB-10.000MHZ-B2	Abracon晶振	AB	10MHz	±100ppm	±20ppm	18pF
AB-11.0592MHZ-B2	Abracon晶振	AB	11.0592MHz	±100ppm	±20ppm	18pF
AB-12.000MHZ-B2	Abracon晶振	AB	12MHz	±100ppm	±20ppm	18pF
AB-12.288MHZ-B2	Abracon晶振	AB	12.288MHz	±100ppm	±20ppm	18pF
AB-14.31818MHZ-B2	Abracon晶振	AB	14.31818MHz	±100ppm	±20ppm	18pF
AB-14.7456MHZ-B2	Abracon晶振	AB	14.7456MHz	±100ppm	±20ppm	18pF
AB-16.000MHZ-B2	Abracon晶振	AB	16MHz	±100ppm	±20ppm	18pF
AB-18.432MHZ-B2	Abracon晶振	AB	18.432MHz	±100ppm	±20ppm	18pF
AB-19.6608MHZ-B2	Abracon晶振	AB	19.6608MHz	±100ppm	±20ppm	18pF
AB-20.000MHZ-B2	Abracon晶振	AB	20MHz	±100ppm	±20ppm	18pF
AB-22.1184MHZ-B2	Abracon晶振	AB	22.1184MHz	±100ppm	±20ppm	18pF
AB-24.000MHZ-B2	Abracon晶振	AB	24MHz	±100ppm	±20ppm	18pF
AB-24.576MHZ-B2F	Abracon晶振	AB	24.576MHz	±100ppm	±20ppm	18pF
AB-25.000MHZ-B2F	Abracon晶振	AB	25MHz	±100ppm	±20ppm	18pF
AB-27.000MHZ-B2F	Abracon晶振	AB	27MHz	±100ppm	±20ppm	18pF
AB-32.000MHZ-B2	Abracon晶振	AB	32MHz	±100ppm	±20ppm	18pF
AB-32.768MHZ-B2	Abracon晶振	AB	32.768MHz	±100ppm	±20ppm	18pF
AB-48.000MHZ-B2	Abracon晶振	AB	48MHz	±100ppm	±20ppm	18pF
AB-50.000MHZ-B2	Abracon晶振	AB	50MHz	±100ppm	±20ppm	18pF
AB-6.000MHZ-B2	Abracon晶振	AB	6MHz	±100ppm	±20ppm	18pF
AB-7.3728MHZ-B2	Abracon晶振	AB	7.3728MHz	±100ppm	±20ppm	18pF
AB-8.192MHZ-B2	Abracon晶振	AB	8.192MHz	±100ppm	±20ppm	18pF
AB-9.8304MHZ-B2	Abracon晶振	AB	9.8304MHz	±100ppm	±20ppm	18pF
AB-10.000MHZ-B2-T	Abracon晶振	AB	10MHz	±100ppm	±20ppm	18pF
AB-11.0592MHZ-B2-T	Abracon晶振	AB	11.0592MHz	±100ppm	±20ppm	18pF
AB-12.000MHZ-B2-T	Abracon晶振	AB	12MHz	±100ppm	±20ppm	18pF
AB-12.288MHZ-B2-T	Abracon晶振	AB	12.288MHz	±100ppm	±20ppm	18pF
AB-14.31818MHZ-B2-T	Abracon晶振	AB	14.31818MHz	±100ppm	±20ppm	18pF
AB-14.7456MHZ-B2-T	Abracon晶振	AB	14.7456MHz	±100ppm	±20ppm	18pF
AB-16.000MHZ-B2-T	Abracon晶振	AB	16MHz	±100ppm	±20ppm	18pF
AB-18.432MHZ-B2-T	Abracon晶振	AB	18.432MHz	±100ppm	±20ppm	18pF
AB-19.6608MHZ-B2-T	Abracon晶振	AB	19.6608MHz	±100ppm	±20ppm	18pF
AB-20.000MHZ-B2-T	Abracon晶振	AB	20MHz	±100ppm	±20ppm	18pF
AB-22.1184MHZ-B2-T	Abracon晶振	AB	22.1184MHz	±100ppm	±20ppm	18pF
AB-24.000MHZ-B2-T	Abracon晶振	AB	24MHz	±100ppm	±20ppm	18pF
AB-24.576MHZ-B2F-T	Abracon晶振	AB	24.576MHz	±100ppm	±20ppm	18pF
AB-25.000MHZ-B2F-T	Abracon晶振	AB	25MHz	±100ppm	±20ppm	18pF
AB-27.000MHZ-B2F-T	Abracon晶振	AB	27MHz	±100ppm	±20ppm	18pF
AB-32.000MHZ-B2-T	Abracon晶振	AB	32MHz	±100ppm	±20ppm	18pF
AB-32.768MHZ-B2-T	Abracon晶振	AB	32.768MHz	±100ppm	±20ppm	18pF
AB-48.000MHZ-B2-T	Abracon晶振	AB	48MHz	±100ppm	±20ppm	18pF
AB-50.000MHZ-B2-T	Abracon晶振	AB	50MHz	±100ppm	±20ppm	18pF
AB-6.000MHZ-B2-T	Abracon晶振	AB	6MHz	±100ppm	±20ppm	18pF
AB-7.3728MHZ-B2-T	Abracon晶振	AB	7.3728MHz	±100ppm	±20ppm	18pF
AB-8.000MHZ-B2-T	Abracon晶振	AB	8MHz	±100ppm	±20ppm	18pF
AB-8.192MHZ-B2-T	Abracon晶振	AB	8.192MHz	±100ppm	±20ppm	18pF
AB-9.8304MHZ-B2-T	Abracon晶振	AB	9.8304MHz	±100ppm	±20ppm	18pF
AB-3.579545MHZ-B2	Abracon晶振	AB	3.579545MHz	±100ppm	±20ppm	18pF
AB-3.6864MHZ-B2	Abracon晶振	AB	3.6864MHz	±100ppm	±20ppm	18pF
AB-4.000MHZ-B2	Abracon晶振	AB	4MHz	±100ppm	±20ppm	18pF
AB-4.9152MHZ-B2	Abracon晶振	AB	4.9152MHz	±100ppm	±20ppm	18pF
AB-5.000MHZ-B2	Abracon晶振	AB	5MHz	±100ppm	±20ppm	18pF
AB-3.579545MHZ-B2-T	Abracon晶振	AB	3.579545MHz	±100ppm	±20ppm	18pF
AB-3.6864MHZ-B2-T	Abracon晶振	AB	3.6864MHz	±100ppm	±20ppm	18pF
AB-4.000MHZ-B2-T	Abracon晶振	AB	4MHz	±100ppm	±20ppm	18pF
AB-4.9152MHZ-B2-T	Abracon晶振	AB	4.9152MHz	±100ppm	±20ppm	18pF
AB-5.000MHZ-B2-T	Abracon晶振	AB	5MHz	±100ppm	±20ppm	18pF
AB-2.000MHZ-B2	Abracon晶振	AB	2MHz	±100ppm	±20ppm	18pF
AB-1.8432MHZ-B2	Abracon晶振	AB	1.8432MHz	±100ppm	±20ppm	18pF
AB-1.8432MHZ-B2-T	Abracon晶振	AB	1.8432MHz	±100ppm	±20ppm	18pF
AB-2.000MHZ-B2-T	Abracon晶振	AB	2MHz	±100ppm	±20ppm	18pF
